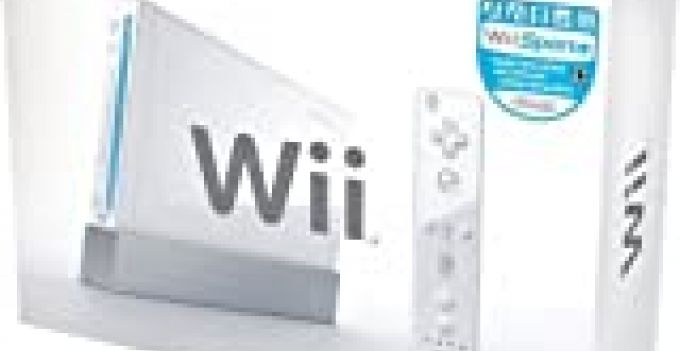

Wii hardware technikai leírás

Processors:

CPU: PowerPC based "Broadway" processor, made with a 90 nm SOI CMOS process, reportedly† clocked at 729 MHz

GPU: ATI "Hollywood" GPU made with a 90 nm CMOS process, reportedly† clocked at 243 MHz

Memory:

88 MB main memory (24 MB "internal" 1T-SRAM integrated into graphics package, 64 MB "external" GDDR3 SDRAM)

3 MB GPU texture memory

Ports and peripheral capabilities:

Up to four Wii Remote controllers (connected wirelessly via Bluetooth)

Nintendo GameCube controller ports (4) (one can be used in conjunction with four Wii Remote units for five-player multiplayer capability)

Nintendo GameCube Memory Card ports (2)

SD memory card slot

USB 2.0 ports (2)

Sensor Bar port

Accessory port on bottom of Wii Remote

Mitsumi DWM-W004 WiFi 802.11b/g wireless module

Compatible with optional USB 2.0 to Ethernet LAN adaptor

Built-in content ratings systems:

BBFC, CERO, ESRB, OFLC, OFLC (NZ), PEGI, USK

Storage:

512 MB built-in NAND flash memory

Expansion available via SD card memory

Nintendo GameCube Memory Cards (for saving GameCube games only)

Slot-loading disc drive compatible with 8 cm Nintendo GameCube Game Disc and 12 cm Wii Optical Disc

Mask ROM by Macronix

Video:

Up to 480p (PAL/NTSC) or 576i (PAL/SECAM), standard 4:3 and 16:9 anamorphic widescreen

Component (including Progressive scan), RGB SCART (PAL only), S-Video (NTSC only), composite output, or D-Terminal

Audio:

Main: Stereo - Dolby Pro Logic II-capable

Controller: Built-in speaker

†Ezen órajelek egyikét sem erősítette meg a Nintendo, IBM, vagy ATI.
